Oxygen humidifier 250 mL, autoclavable at 134 °C
011250A
New product

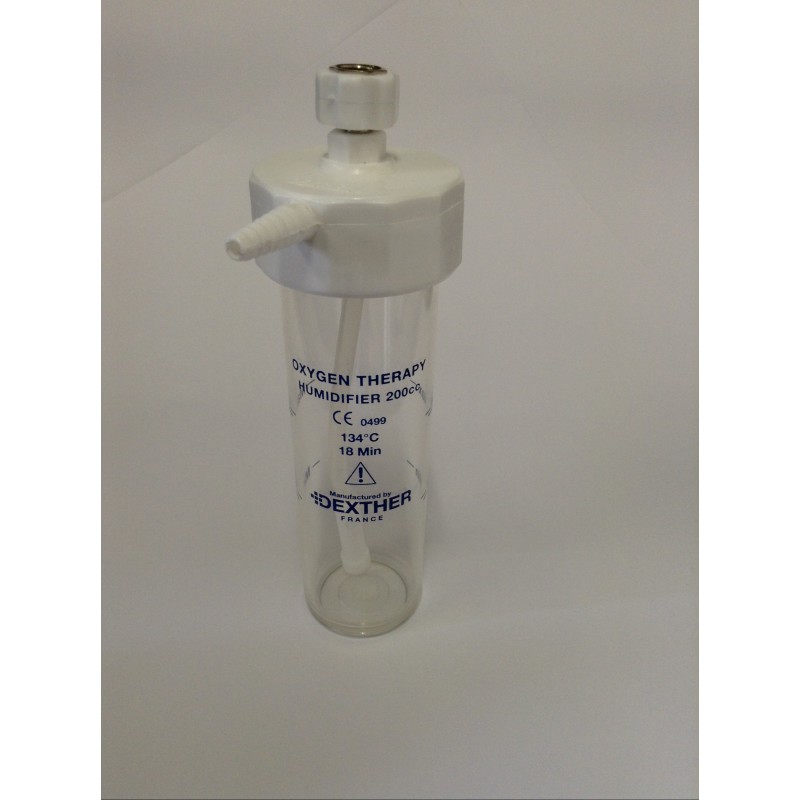

The DEXTHER humidifier, autoclavable at 134 °C, humidifies the oxygen delivered to the patient to prevent drying of the mucous membranes. It connects to flowmeters, pressure regulators and concentrators. Designed and made by DEXTHER in Meaux, France.
More info
Features
- Autoclavable at 134 °C, supplied non-sterile.
- Height 190 mm, diameter 57 mm, width with inlet extension 67 mm, weight 130 g.
- Capacity: 100 mL of water maximum.
- Inlet connection to choose: 12x125 (M12x1.25), 1/4 (G1/4), 3/8 (G3/8) or 9/16 UNF.
- Outlet: extension for soft tubing, 5 to 9 mm diameter.
- Flow up to 15 L/min, pressure 6 bar maximum.
- Humidity output: over 10 mg/L at 22 °C; water consumption about 8 mL per hour at 10 L/min (23 °C).
- Operating temperature: 10 °C to 40 °C.
References
- Inlet 12x125: 011250A
- Inlet 1/4: 011250B
- Inlet 3/8: 011250C
- Inlet 9/16: 011250D
Use

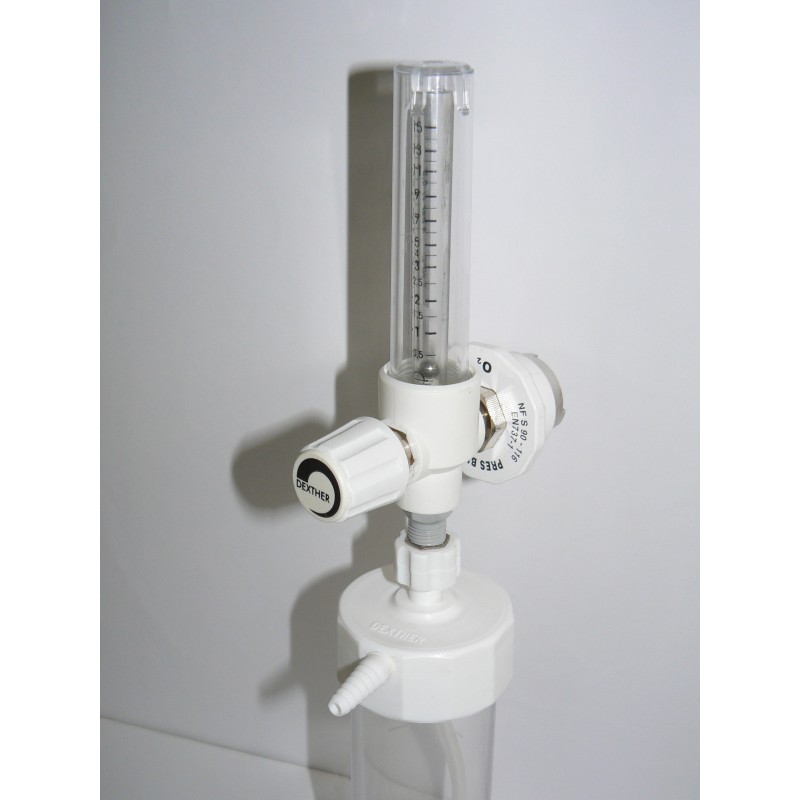

Screw the humidifier onto the flowmeter, pressure regulator or concentrator, fill with water up to the maximum level, then connect the patient tubing to the outlet.
Care
Empty and clean after use, then autoclave at 134 °C according to the facility's procedure.
Packaging
Sold individually, complete.
